Let's put this forum to a test

7761 Views 24 Replies 5 Participants Last post by Desertcat, Nov 1, 2008

Desertcat

Discussion Starter · Oct 18, 2008

Guys I recently replaced my belt on my 2006 650 H1 Prowler. My service manual indicated there were two threaded holes in the secondary clutch to spread them apart for belt service. After checking over the clutch I don't see anything. May be I have a first gen clutch. Any way how do you release the tension on the secondary clultch so you can replace the drive belt?????

1 - 20 of 25 Posts

ArizonaProwler

· #2 · Oct 19, 2008

4

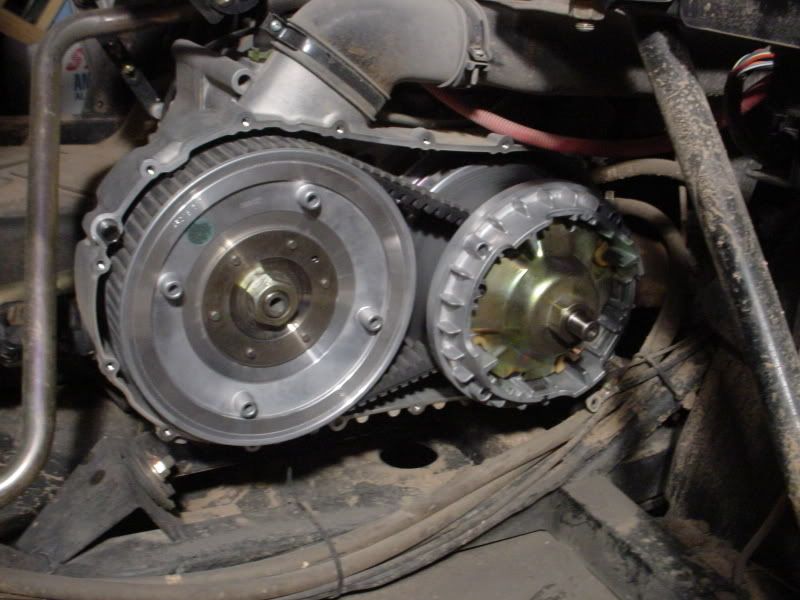

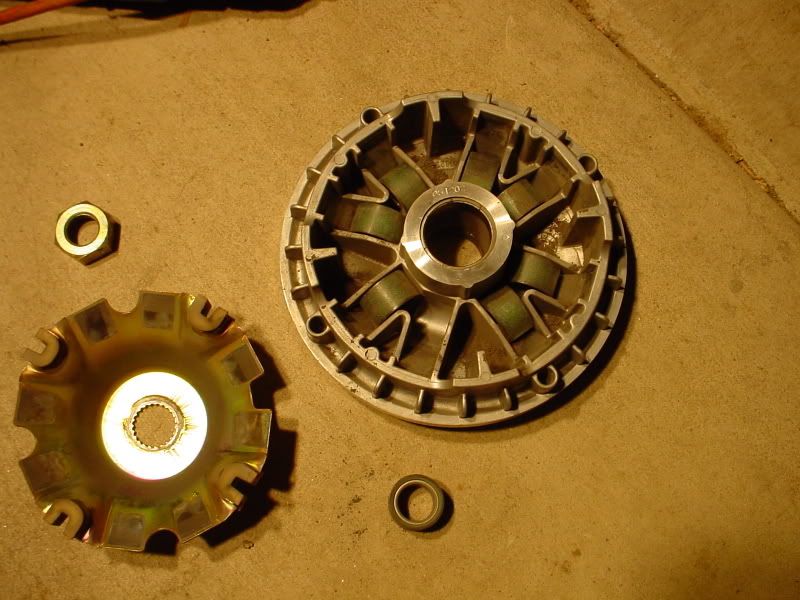

I pulled the big nut off the center of both pulleys to clean and inspect them.

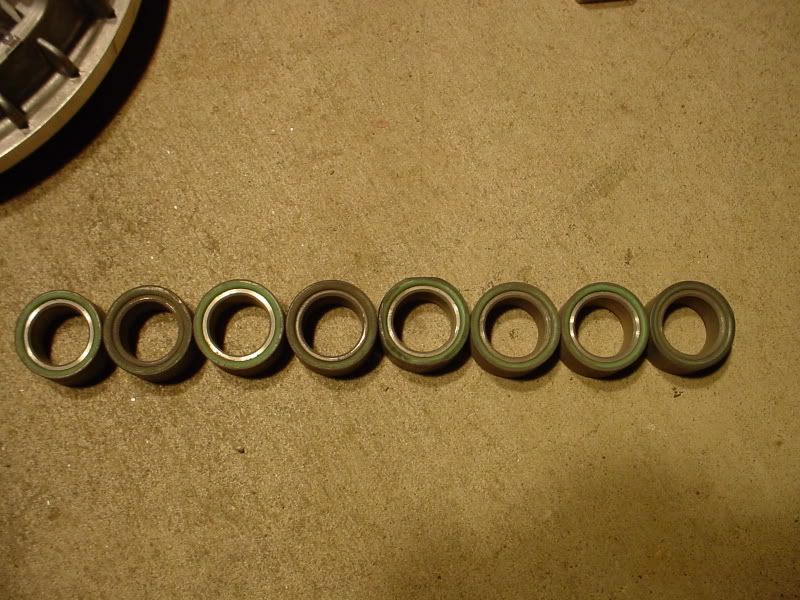

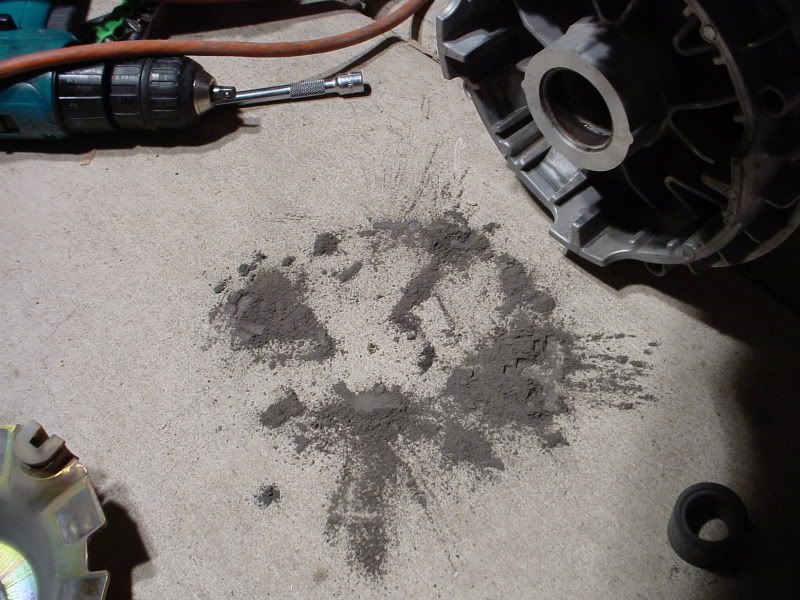

Then took the belt off and cleaned it out. Check the weights. I had a flat one and I've heard of others having flat weights also.

The 5th one has a flat spot

See less See more

Desertcat

Discussion Starter · #3 · Oct 22, 2008

I replaced all the weights also. Let me ask you this, how would you install a new belt if your old one broke while riding in the desert??

sandchris

· #4 · Oct 23, 2008

Hey desert cat I made some wood wedges out of 2x4's that i used to spread the secondary sheave apart.Its been awhile ago but what I did was cut them from zero
to about a inch and a half.And I think they were about three to three and a half inches long.You have to be able to pry them in to start them.Be sure you are using some soft wood like pine so you dont damage or scratch your sheave surface.As the sheaves come apart the belt will loosen to change it.You might have to roll the secondary clutch back and forth a little bit while prying the wood wedge in.I used the primary sheave to pry off of.Do you notice how high the belt is in the sheave on the secondary clutch?If so all you need to do is open the secondary clutch a little bit and it will come right off.Then with the wedge still in place install the new belt.Hold the new belt into the sheave with some pressure so that when you work the wedge out the belt will hold the sheave open and not bite on the wedge so you can remove it.And make sure you dont leave wood chips from wedge in the sheave.Hope that helps.

See less See more

1 Phat Cat

· #5 · Oct 23, 2008

There is only one hole that is threaded for the spreading.. Here is a pic..
The side cover bolts are the same thread pitch and work good for this..

See less See more

sandchris

· #6 · Oct 23, 2008

ouch, is that one of your old ones phat cat?

1 Phat Cat

· #7 · Oct 23, 2008

sandchris said:
ouch, is that one of your old ones phat cat?

yup! ......

Desertcat

Discussion Starter · #8 · Oct 23, 2008

Cool I have you guys thinking. Phat cat using a screw is what I hoped to do but my secondary clutch sheave sheave face is different than yours and does not have the threaded hole to push them apart. Take a look at Arizona Prowlers above post, my clutch looks just like his. It apears that AC made changes to the clutch face in 07 to make the belt R&R much less painfull. I posted this question to see what the 06 guys with this style clutch our doing. Who has the tricks???

sandchris

· #9 · Oct 23, 2008

Desert cat you are right,The 06 did not have the threaded hole.Is it possible to drill and tap a hole like the 07 and later?

Desertcat

Discussion Starter · #10 · Oct 24, 2008

I am doing research as we speak. I am hoping to have a fix for this problem soon. I have tried to work with my local dealer and they don't have an answer yet, so I am working with a really good design and fabrication company to make this happen. Keep the input coming, the 06 guys need this.

Desertcat

Discussion Starter · #11 · Oct 28, 2008

does any one else have some ideas on how to install a new belt if you break it in the field????

ElkoTrailRider

· #12 · Oct 29, 2008

I just had the shop replace mine, because it had started to slip a bit under some tough loads. When it was all done, the mechanic told me that if I ever wanted him to do that again, I could, well, you know.

I am wondering how you break the clutch nut in the field when it has been torqued to 250 ft-lb? I like the wedge idea!

Bob

ArizonaProwler

· #13 · Oct 29, 2008

Has anyone done one at home? I cant imagine doing one out on the trail. Probably be an all day job on the trail.

See less See more

Desertcat

Discussion Starter · #14 · Oct 29, 2008

I have done one at home. My belt broke a mile from my house, no big deal right. Even in my garage it was a pain in the butt. This is why I keep bring this topic up. Lets face it, some where, some how one of us will brake a belt in the field and god help you when you try to change it yourself. I don't think my 3 year and 10 month old will be much help. Guys we need to come up with a good safe fix for this. The dealers tell me they don't brake and bring it in for the recommended service you will be fine. Then I ask how would you change it, they reply I don't know!!!! My point exactly.

sandchris

· #15 · Oct 29, 2008

The wood wedge works and can be done on the trail.Honest

Desertcat

Discussion Starter · #16 · Oct 30, 2008

Do you have pictures

sandchris

· #17 · Oct 30, 2008

No photos but if you like i can show you.I dont have the ac engine so it would have to be on yours.

Desertcat

Discussion Starter · #18 · Oct 30, 2008

That sounds good, lets do that some time.

Desertcat

Discussion Starter · #19 · Oct 30, 2008

Elko we need to come up with a solution to this problem. Can on of the tech's at your dealer help us out??

Sandchris, would the wedges work if your belt was broken "GONE" and you had to install a new one in the field?

1 Phat Cat

· #20 · Oct 31, 2008

I know its a few bucks, but might make more sense to buy the newer style Driven Pulley..

1 - 20 of 25 Posts
